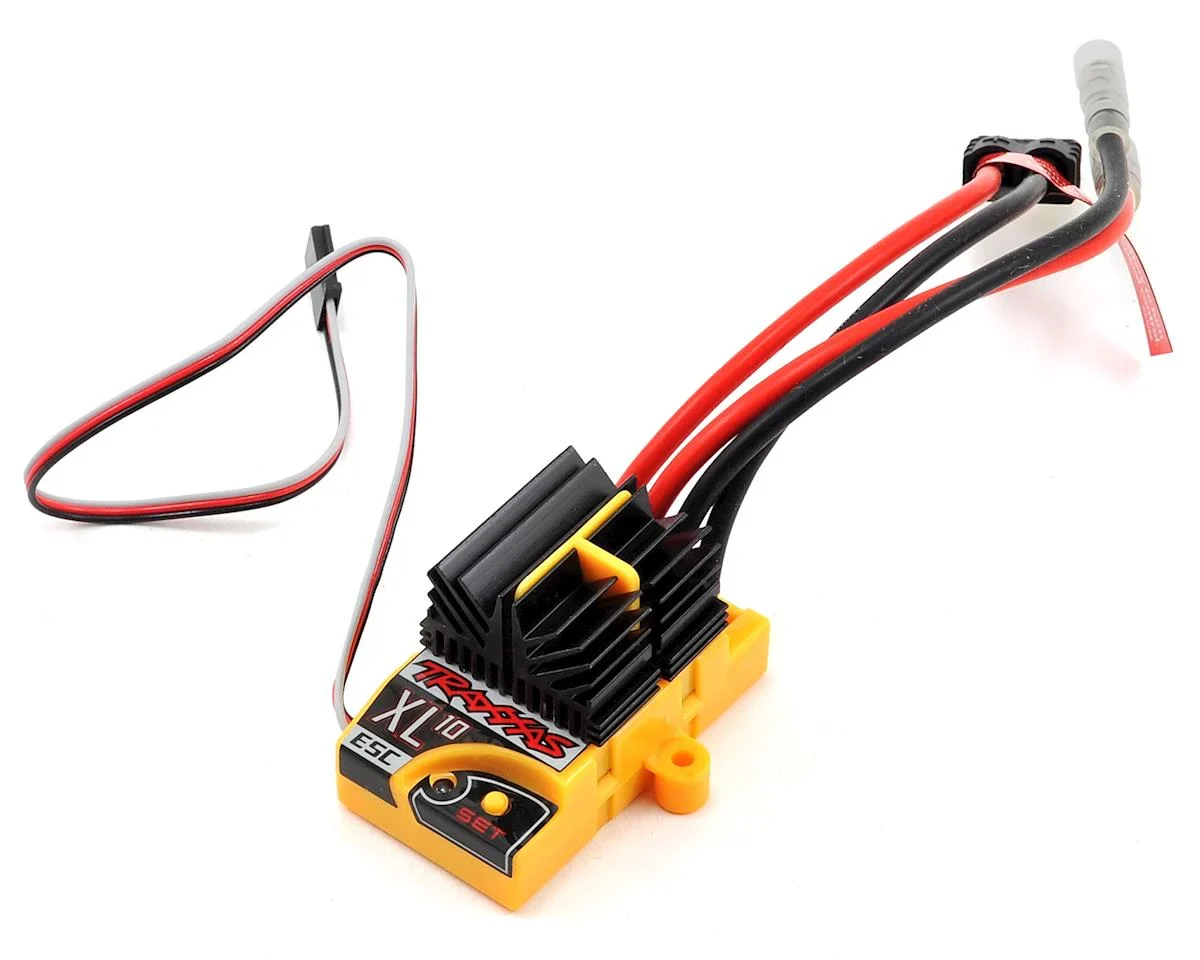

Traxxas’ XL-10™ 7.2-volt electronic speed control is the muscle car of reversing speed controls. It’s built from the ground up to pack a serious punch and flows rivers of hardcore power. The XL-10 harnesses that current with smooth, precise full-proportional control of your forward/reverse speed and the powerful brakes. It features three easy-to-program drive profiles and EZ-Set® push-button setup. Efficient high-frequency operation, MOSFET transistors, and thermal shutdown protection allow a generous 10-turn motor limit. The same low-loss design that puts down the power also provides longer run times. The sturdy XL-10 comes with the peace of mind of the Traxxas Lifetime Electronics Warranty and unmatched Traxxas customer support.

Features

• 10-turn motor limit for 540 size motors
• High-frequency operation for smooth throttle control
• Fully-proportional forward, reverse, and braking control
• Programmable with three drive profiles:
• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode – 50% Fwd / Brake / 50% Rev
• EZ-Set® push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty


Specifications:
Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
Case Size: 1.23"W x 1.80"D x 0.61" H
Weight: 2.71 Ounce
Motor Limit: 10-turns* (540 Size)
On Resistance Forward: 0.006 Ohms
On Resistance Reverse: 0.006 Ohms
Peak Current - Forward: 150A
Peak Current - Reverse: 150A
Braking Current: 75A
Continuous Current: 30A
BEC Voltage: 6.0 VDC
BEC Current: 1000mA
Power Wire: 14 Gauge / 5"
Input Harness Wire: 26 Gauge / 9"
Transistor Type: MOSFET
PWM Frequency: 1600 Hz
Thermal Protection: Thermal shutdown
Profile Selection:

• Sport Mode:
• 100% FWD, 100% brakes, 100% REV
• Race Mode:
• 100% FWD, 100% brakes, no REV
• Training Mode:
• 50% FWD, 100% brakes, 50% REV

Single-button setup: Yes, Traxxas EZ-Set

*Properly geared
